Product introduction

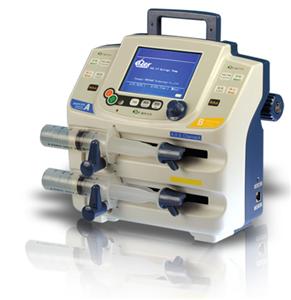

SIMBA-IV dual Syringe Pump is a intellectualized automatic infusion device, The pump makes good use of the 32 bit CPU and built-in intellectualized operation system, It has a powerful performance of calculation and good expansibility of functions. It has two syringe drive systems which can delivery drugs independently and cooperatively.
Functions and Features:
(1) Operation modes: Flow rate controlled infusion mode, volume and time controlled infusion mode, intermittent infusion mode.
A) Flow rate controlled infusion mode: It enables the users to control the infusion by setting the flow rate. There are seven dose rate units of available such as ml/h, mg/h, ug/h, mg/kg/h, mg/kg/min, ug/kg/h, ug/kg/min.
B) Volume and Time Controlled Infusion: It enables the users to control the infusion by setting the desired volume and the desired time to be infused.It will be the assistance to the traditional manual injection.
C) Intermittent Infusion mode: It enable the user to control the infusion by setting the flow rate to be infused, volume to be infused per interval, intermitted time per interval, and KVO rate during intermitted time. It is fit for infusing the drugs which has long effect duration.
(2) Bolus function: help patients to past the stimulative phase safely and steadily.
(3) RS-232 communication: it enables the history data to be transmitted from pump to PC
(4) Alarm and Warns: when something abnormal occurs, the pump can give out alarming and warning information such as AC power failure, battery low, near empty of the syringe, empty of the syringe /occlusion, end of infusion, Syringe disengaged, check syringe etc.
(5) Available syringe :all kinds of syringe whose standard capacity is in the standard capacity set 10ml,20ml,50(60)ml can be used in the pump by custom syringe’s setting .And the infusion accuracy can be guaranteed.
SPECIFICATIONS:
Range of Flow rate: 10ml syringe: 0.1~300ml/h;
20ml syringe: 0.1~600ml/h;
50(60)ml syringe: 0.1~1200ml/h;
Suitable Syringe: all the syringe in the standard capacity set 10ml, 20ml, 50(60)ml can be used in the pump by custom syringe’s setting.
Accuracy: ±3% (on condition that the total infusion capacity is more than 5.0ml and the infusion rate is more than 2.0ml/h and the syringe extension set have been purged)
Bolus rate: 300ml/h
Display : A large Screen(320×240pixel), rotary setting with convenient operation interface.
Operating conditions:
Ambient temperature: +5℃～+40℃
Relative humidity (RH): 30 %～75 %
Power supply:
AC:100V～245V、50 ±1Hz
Battery: 14.8V battery can use for more than 3 hours after charged for 10 hours.
Atmospheric pressure: 860～1060hPa
Dimension (mm): 272(L)×200(W)×270(H)
Weight: 3.9kg
Safety Classification: Class II and Type CF
