Product introduction

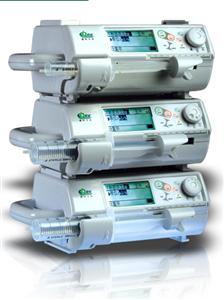

SIMBA-VI stackable syringe pump is a kind of intellectualized automatic infusion equipment which makes use of the integration of the technology of micro-processor control and precise manufacture. It is available for performing an intravenous infusion and the lab scientific research. It is characterized by accurate infusing, sufficient function and simple operation.
Functions and features:
(1) Operation modes: Flow rate controlled infusion mode. Volume and Time controlled infusion mode, Total intravenous anesthesia infusion (TIVAI)mode.
A) flow rate controlled infusion mode: It enables the users to control the infusion by setting the flow rate. There are seven flow rate units of available such as ml/h, mg/h, ug/h, mg/kg/h, mg/kg/min, ug/kg/h, ug/kg/min .
B) Volume and Time Controlled Infusion: It enables the users to control the infusion by setting the desired volume and the desired time to be infused。
C) Total intravenous anesthesia infusion (TIVAI) mode: The infusion is controlled by the setting the first dose, the time need for the initial infusing dose and the maintain infusion rate. It is a function likes TCI(target control infusion) ,this make drug dispensing more convenient and safer.
(2) Bolus function: help patients to past the stimulative phase safely and steadily.
(3) KVO function: Automatically start the KVO(keep the vein open) infusion when the normal infusion stopped.
(4) Alarm and Warns: when something abnormal occurs, the pump can give out alarming and warning information such as AC power failure, battery low, near empty of the syringe, empty of the syringe /occlusion ,end of infusion, Syringe disengaged etc.
(5) Available syringe :all kinds of syringe whose standard capacity is in the standard capacity set 10ml,20ml,50(60)ml can be used in the pump by custom syringe’s setting. And the infusion accuracy can be guaranteed.
(6) Modular design, designed for both stationary and mobile use freely. The pumps can be assembled to a unit to save room or mounted independently.
SPECIFICATIONS:
Range of Flow rate: 10ml syringe: 0.1~300ml/h;
20ml syringe: 0.1~600ml/h;
50(60)ml syringe: 0.1~1200ml/h;
Suitable Syringe: all the syringe in the standard capacity set 10ml, 20ml, 50(60)ml can be used in the pump by custom syringe’s setting.
Accuracy: ±3% (on condition that the total infusion capacity is more than 5.0ml and the infusion rate is more than 2.0ml/h and the syringe extension set have been purged)
Bolus rate: 300ml/h
Display: A large screen (192×64 pixel), rotary setting with convenient operation interface.
Operating conditions:
Ambient temperature: +5℃~+40℃;
Relative humidity (RH): 30 %～75 %
Power supply:
AC:100V～245V、50 ±1Hz
Battery: 14.4V battery can use more than 3 hours after charged for 10 hours.
Atmospheric pressure: 860~1060hPa
Dimension (mm): 214(L)×134(W)×94(H)
Weight: 2.2kg
Safety Classification: Class II and Type CF
